32 Inch Desktop Directory / Advertisement / Information Kiosk with LCD Touch Screen Digital Signage Vertical

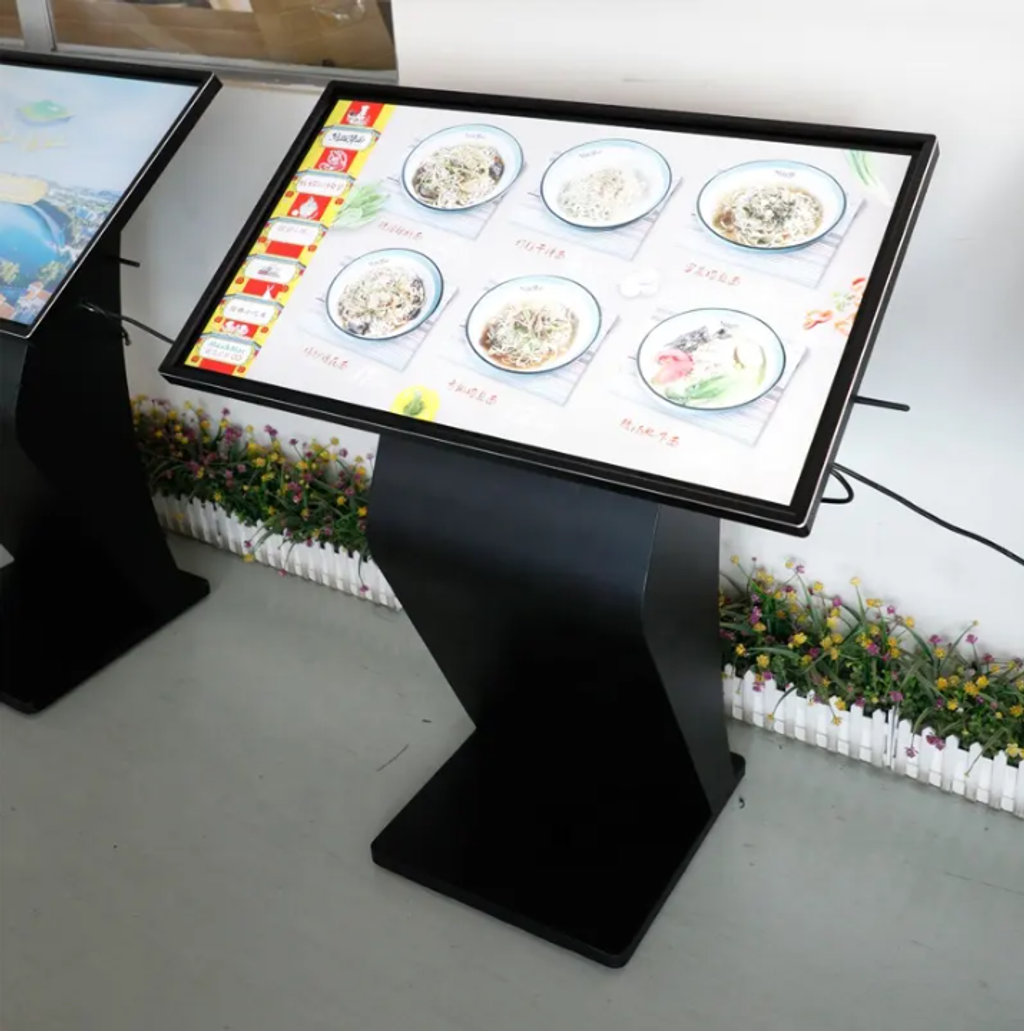

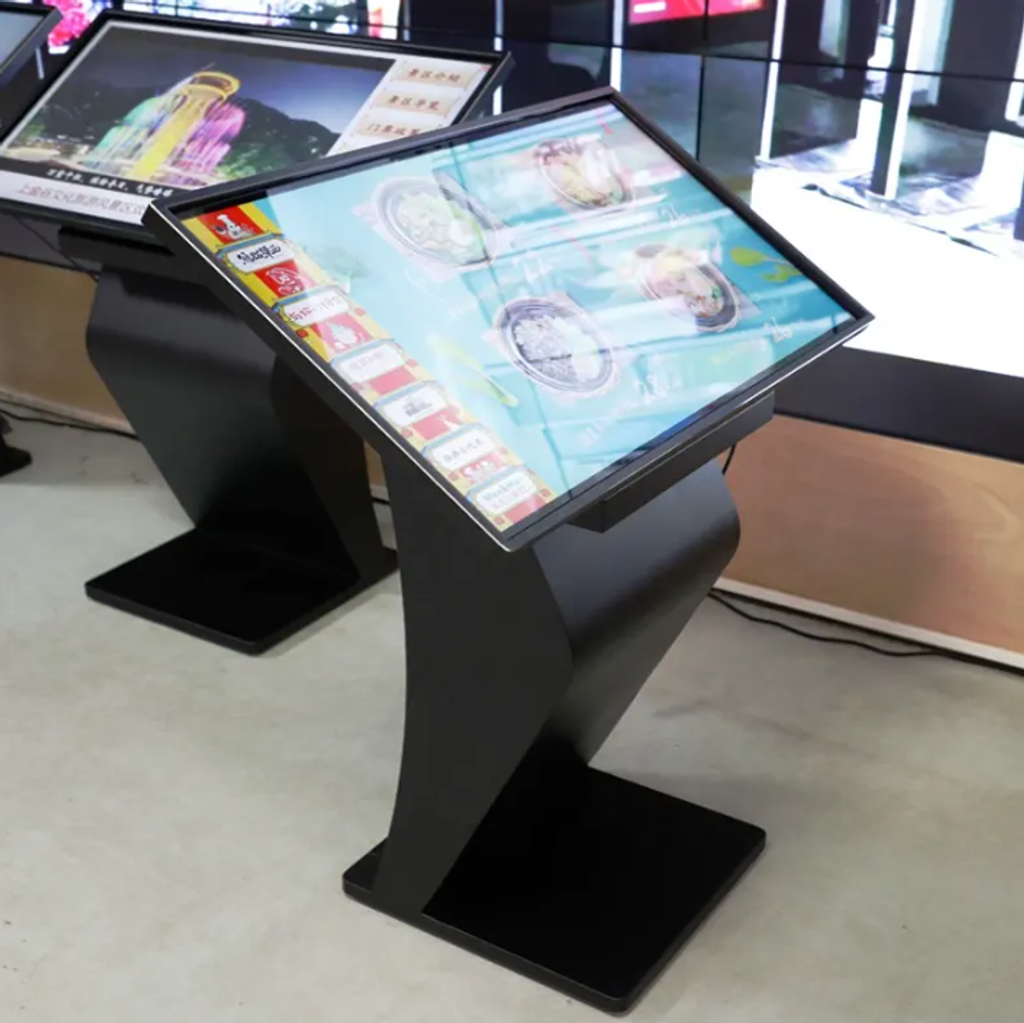

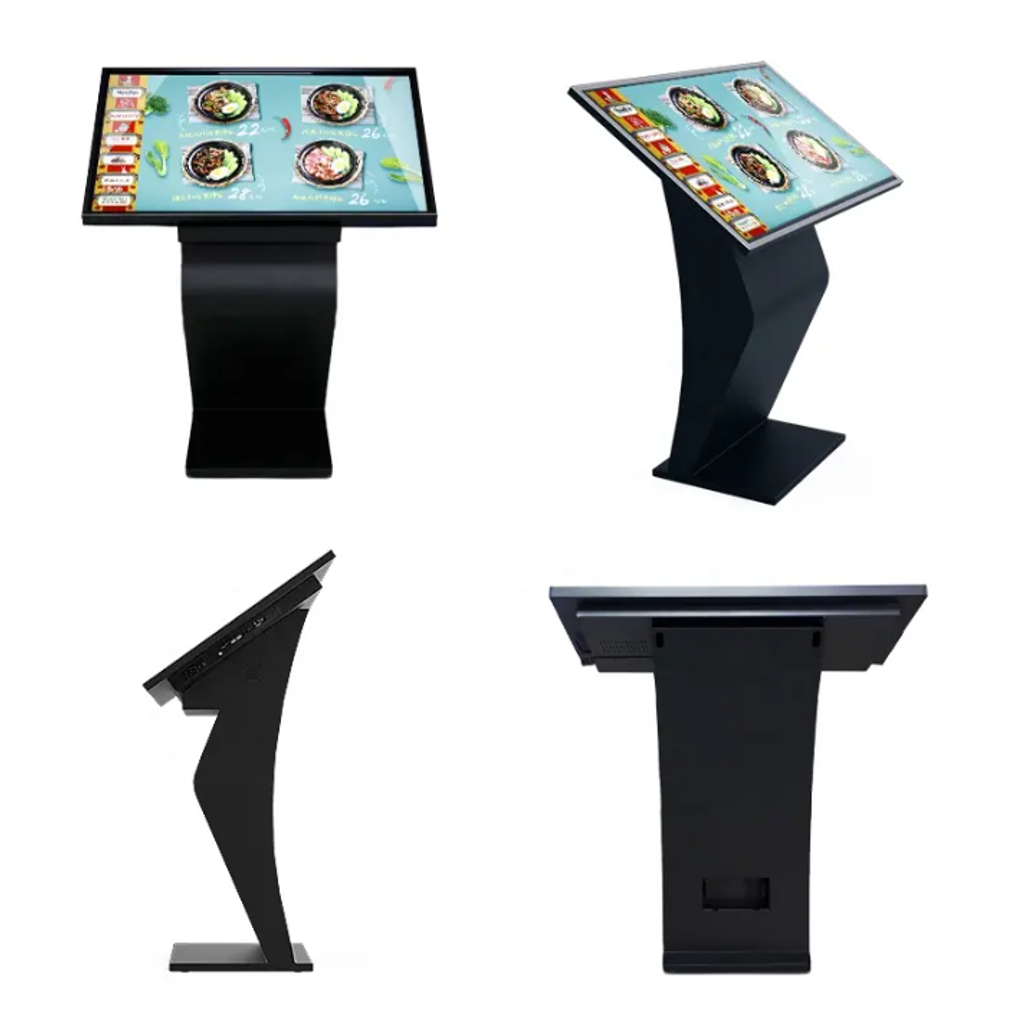

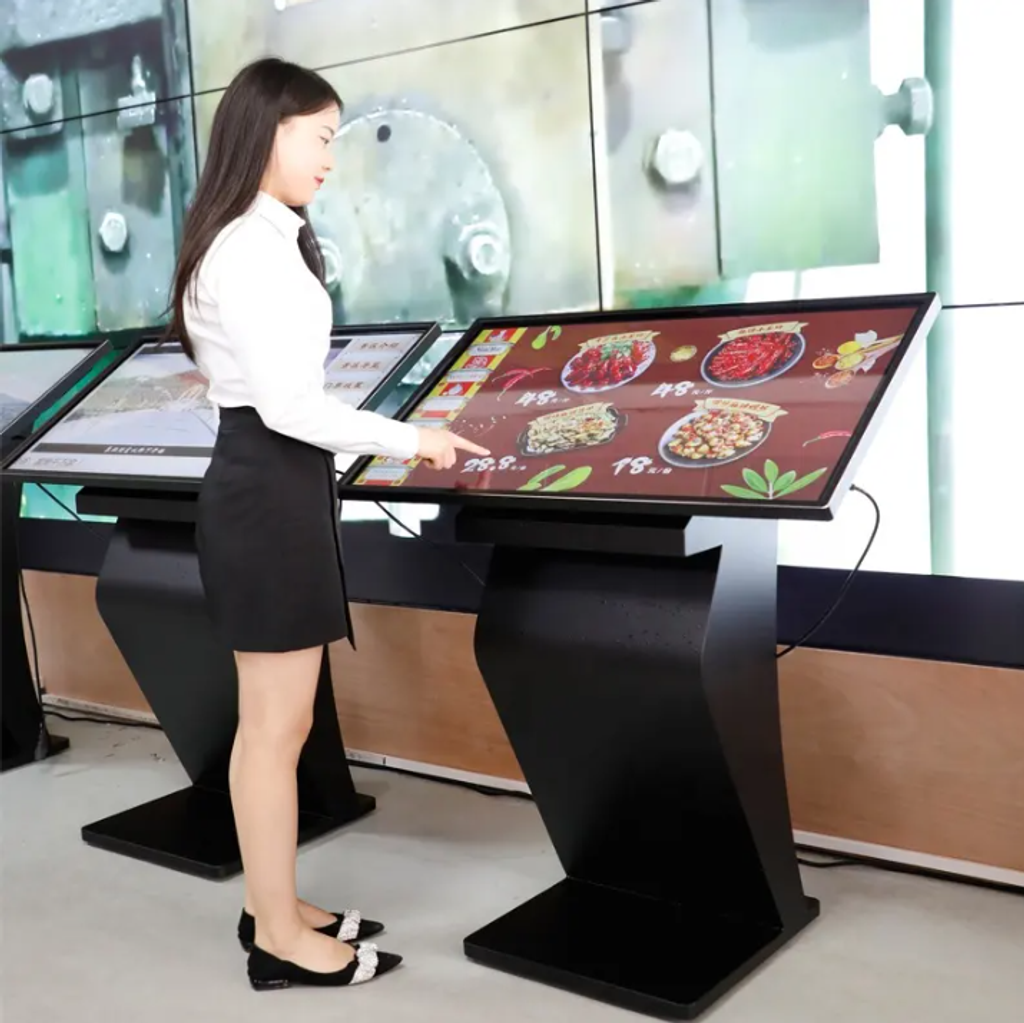

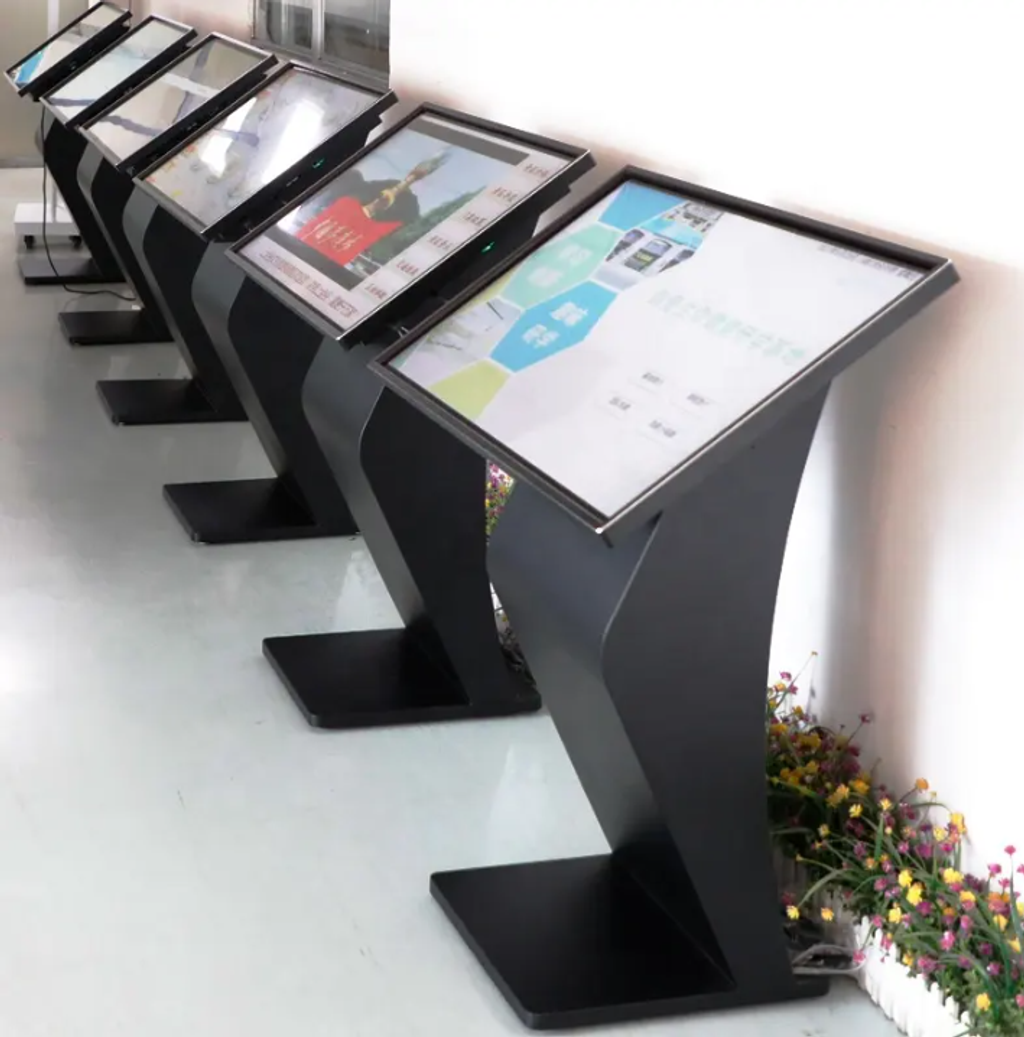

K-Shape Touch Kiosk

Supports multiple periods of time automatic switching on/off function in a day.

Support multi-languages system

Support USB Flash disk loop playback, play pictures, videos, text scrolling, pdf etc.

Support remote control from CMS software cloud server

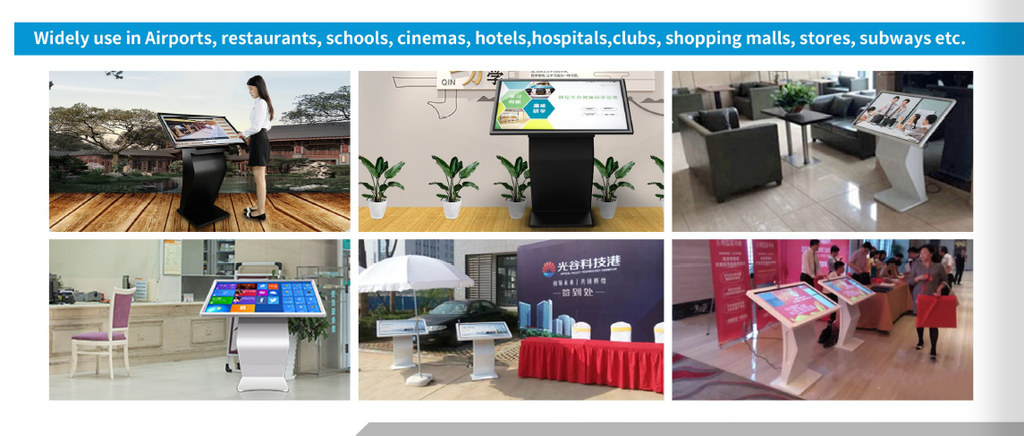

Multi-scenario application: Airports, restaurants, schools, cinemas, hotels, clubs, shopping malls, stores, subways etc.

Panel

Size of Panel: 32”

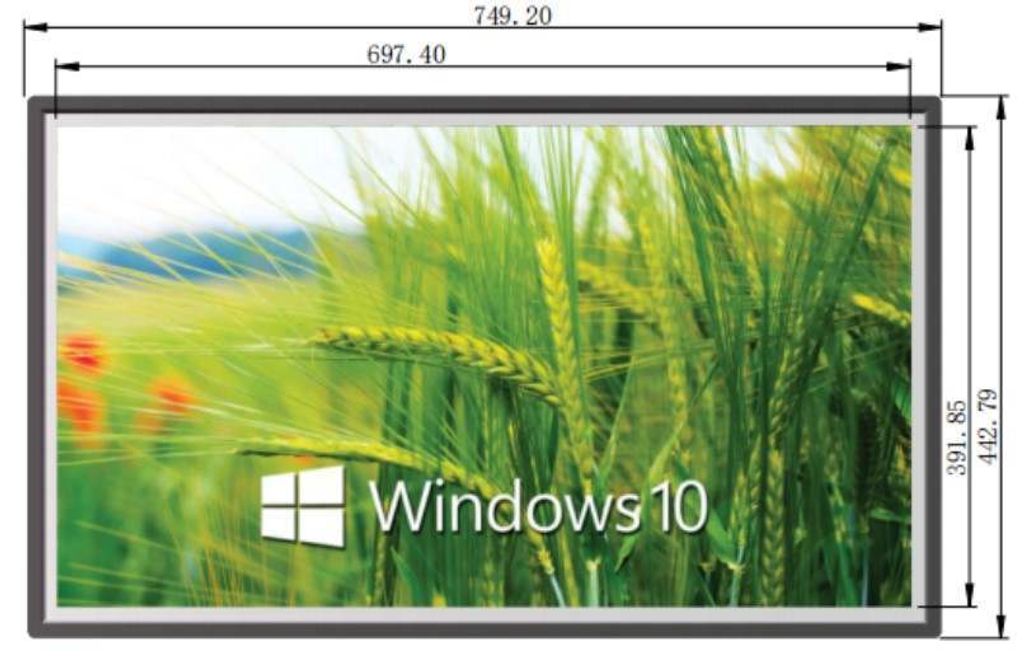

Screen size(mm): 991.98mm*580.21mm（V*H）

Display color: 16.7M

Brightness: 350 cd/m2

Pixels: 1.2MM

Power Supply: AC100~240V 4A 50/60Hz

Resolution:  2K(1920*1080)

Certificate: CE/CCC/FCC/RoHS/ISO9001

Type: TFT

Pixel Pitch: 0.63mm

Contrast Ratio: 1200:1

Visual angle: 178°/178°

Response time: 5ms

Horizontal frequency: 50-60KHZ

Vertical frequency: 50-60KHZ

Input and Output

USB: 2

WiFi: 1

LAN(RJ45): 1

Speaker: 5W*2

Android Function Parameters

Memory (RAM): 4GB

Build-in Memory (ROM): 32GB

WiFi: Yes

Decoding Resolution: Highest @ 3840*2160

Video Format: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc

Picture Format: JPG, BMP, PNG, GIF, etc up to 4096*4096 resolution

REMOTE CONTROL MANAGEMENT SYSTEM: CLOUD-BASED SERVER CMS

Cloud Server

One year free trial upon cloud account registration (limited to 1 unit terminal per account, 256MB storage).

Terminal Count and Storage upgrade available with paid services.

Annual license as low as USD $36 per year.

Product Features and Function

1. The machine screen display function can customize the display of pictures, videos, text, time, weather, countdown, subtitles, split screen, and other contents;

2. Auto start control, advertising programs can be automatically played on the machine;

3. Timing switch function;

4. Playback mode: support cycle, timing, insert, split screen and partition playback;

5. Split screen playback, support full screen, split screen, split screen, etc., multiple uses of one screen;

6. Support U disk to automatically import and play advertising programs;

7. LCD screen: adopt brand new LCD screen; High efficiency and energy saving; 2K screen with bright colors.

8. WiFi: The network version has a built-in high-performance SDIO interface WiFi module that supports IEEE 802.11 b/g/n; 9. Network Ethernet port: 10/100M adaptive Ethernet;

10. Network version of Android network solution: Android network motherboard, with a maximum dominant frequency of 1.8 GHz, 2GB storage, standard 16GB EMMC NAND chip
