4 port HDMI splitter with 15m transmission distance support 1080P 3D 4K*2K

Product description

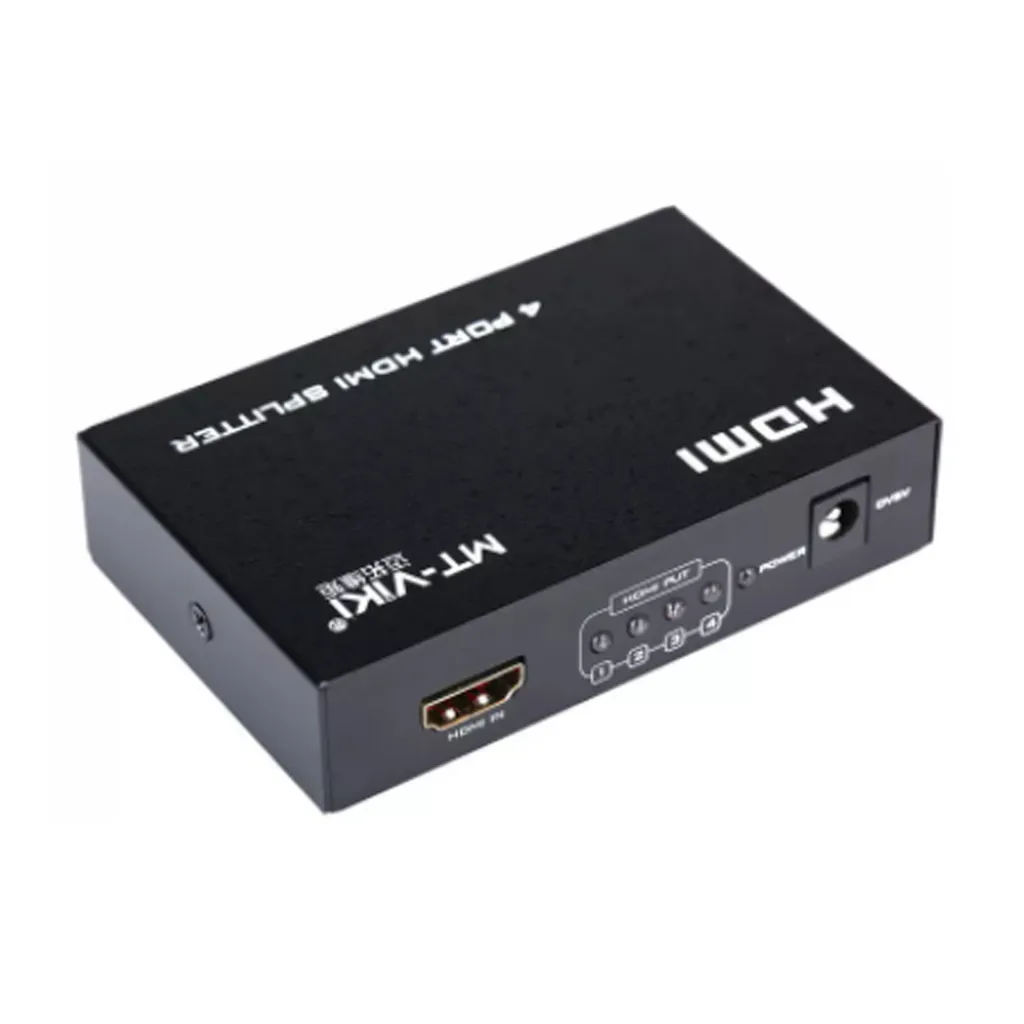

Full HD 3D 1080p HDMI splitter 1-in-4 out HDMI 1.4V for HDTV, projector MT-SP104M
MT-SP104M HDMI splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.


Features


Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, deep, color) HDCP compatible
Supports resolutions of up to 1920*1440/1080p Full HD
Support EDID
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15m (24AWG)
Supports up to 250MHz bandwidth for high performance video
Signaling rates up to 3.4Gbits
Plug-and-play – no software installation required

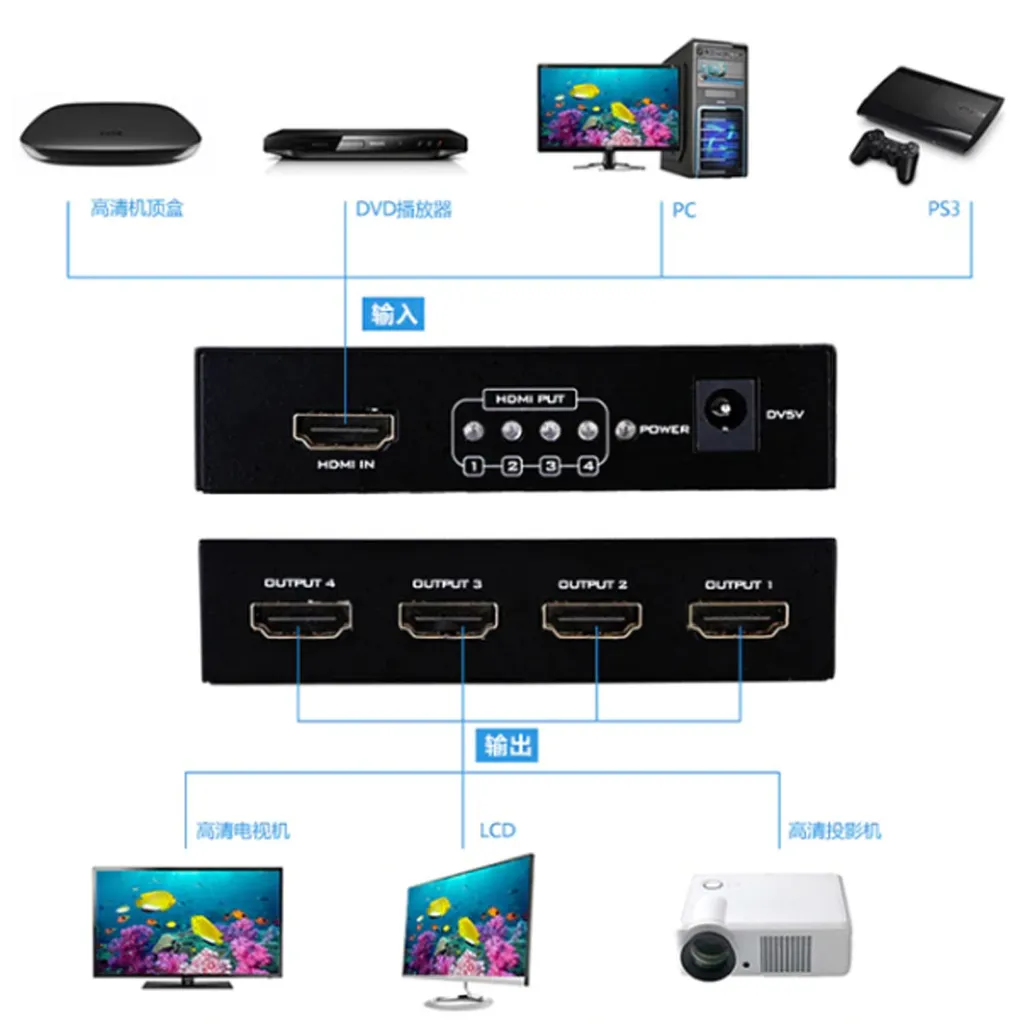

Application:
PC/TV/PS game/laptop/TV box/projector etc.
Broadcasting video information (news headline, stock prices, airline, train schedule, etc.)
Monitoring harsh work environment from safe location.
Classroom or company training facilities.


Specifications

Video Input
Interface:    1 x HDMI Type A Female
Impedance:    100Ω
Max distance:    15m

Video Output
Interface:    2 x HDMI Type A Female
Impedance:    100Ω

Video
Max. data rate;    10.2Gbps (3.4Gbps Per Lane)
Max. pixel clock:    250 MHz
Compliance:    HDMI (3D, Deep Color, 4K);
                                 HDCP Compatible
Max resolutions:    Up to 1920*1440@60Hz (4:2:0)
Max distance:    Up to 15m

Audio
Input:    1 x HDMI Type A Female
Output:    4x HDMI Type A Female

Power
Connector:1 x DC Jack
Consumption: 5 VDC,2A

Environment
Operating Temp:     -5-55°C
Storage Temp:     -20-60℃
Humidity:    5-90% RH, Non-Condensing

Physical Properties
Housing:    Metal
Weight;    0.45kg
Dimensions:    9.5 x 6 x 2cm(L x W x H)

Carton Lot:    20pcs
package Contents:    1*User Manual, 1*power adapter
