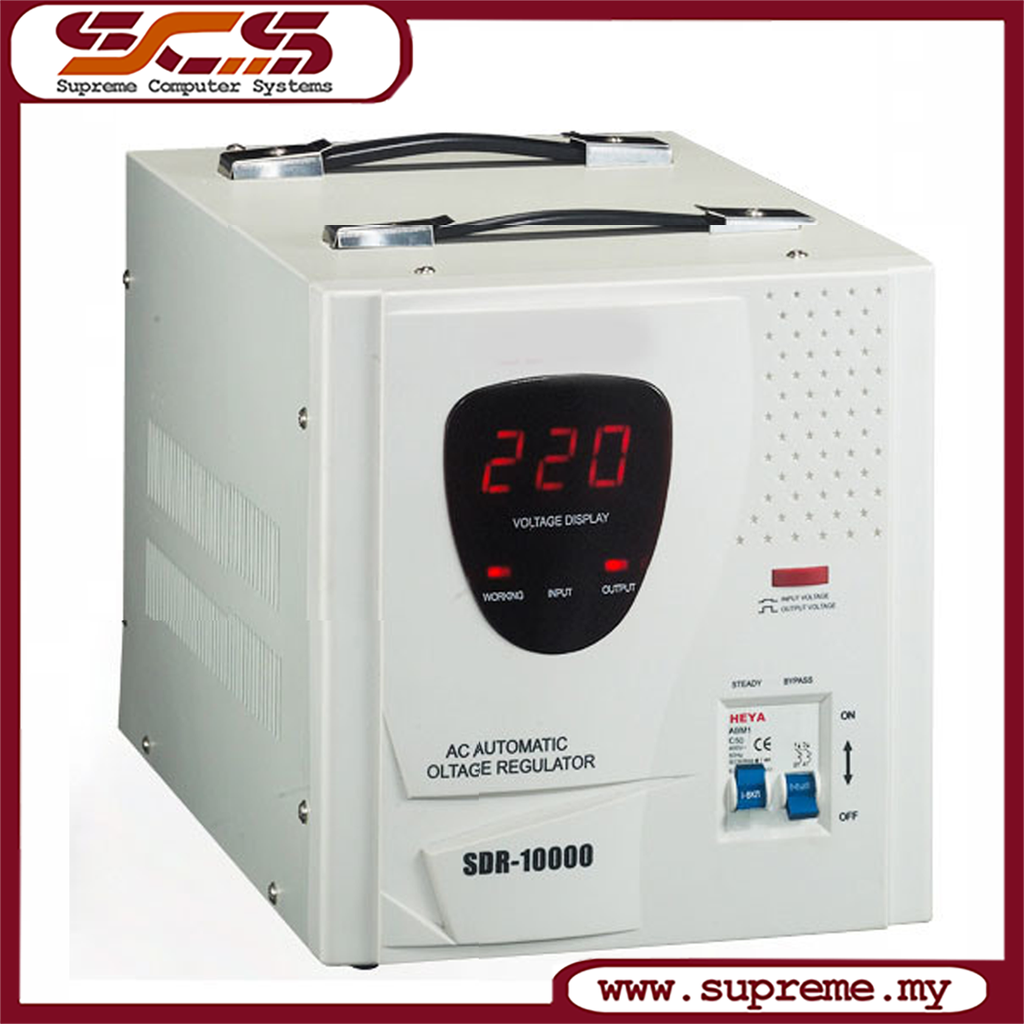

10000va LED Relay Type Full Automatic AC Voltage Regulator SDR-10000


•Number of relays 3 +1
•The high output voltage accuracy (220V ± 8%)
•Wide stabilization range
•High speed stabilization
•One euro socket
•High accuracy
•Informative LED-display
•Modern design
•Microprocessor control
•The multistage defense

Input voltage     : AC140-260V
Output voltage  : 220V±8%
Phase                 : Single Phase
Frequency          : 50-60Hz
Adjust time        : 1 second
Type of stabilization : Relay
Display                : LED digital display
Protection over voltage  : 250±2V
Protection lack voltage  : 180±2V
Efficiency                           : 98%

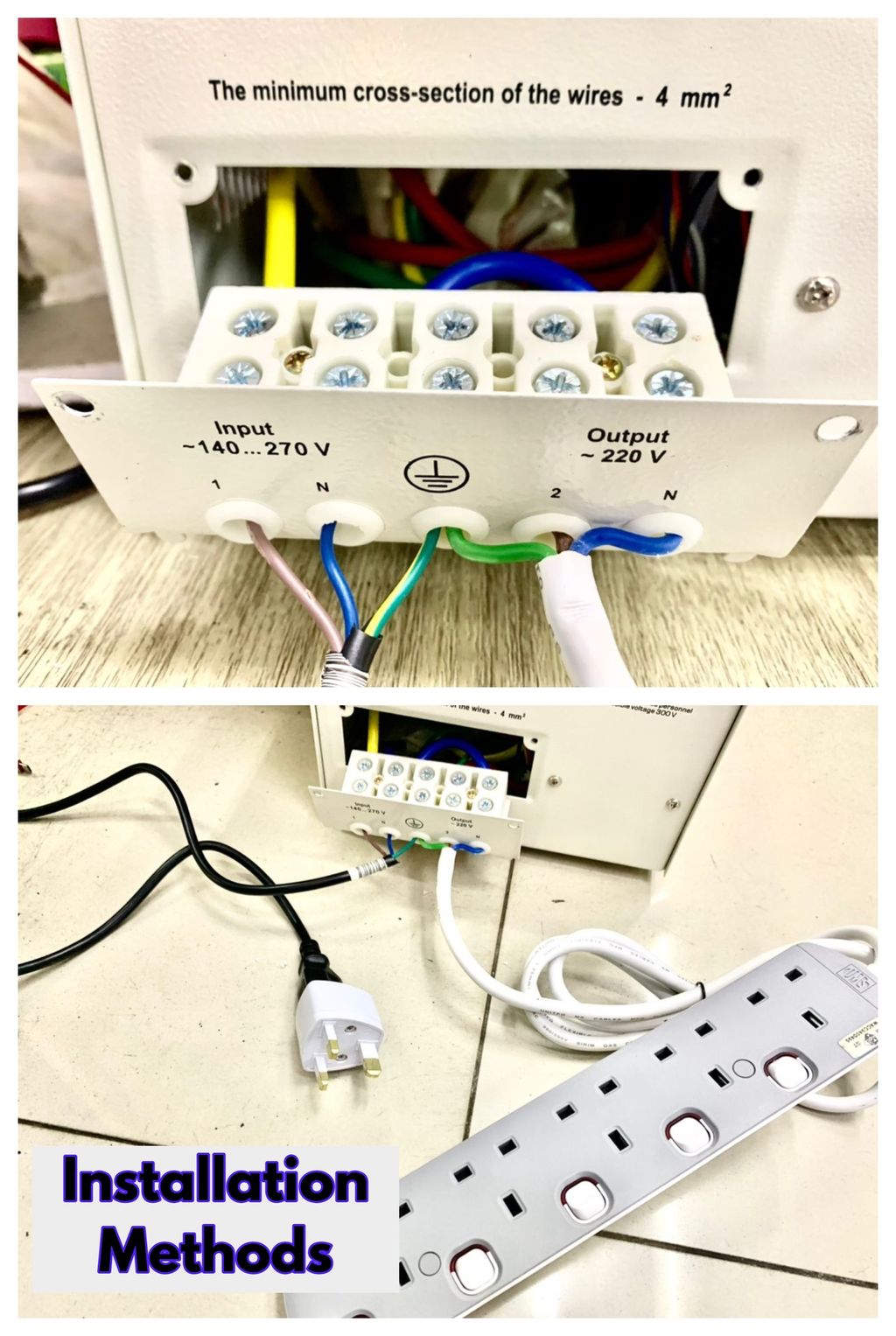

Type of connection          : Terminal block
Degree of protection       : IP20
Delay                                  : 5 second
Temperature protection  : 110°C±10°C
Ambient Temperature     : -10~+45°C
Relative humidity             : 80%
Waveform distortion       : No additional wave form distortion

What's In The Box

> 1x 10000VA AC Voltage Regulator
