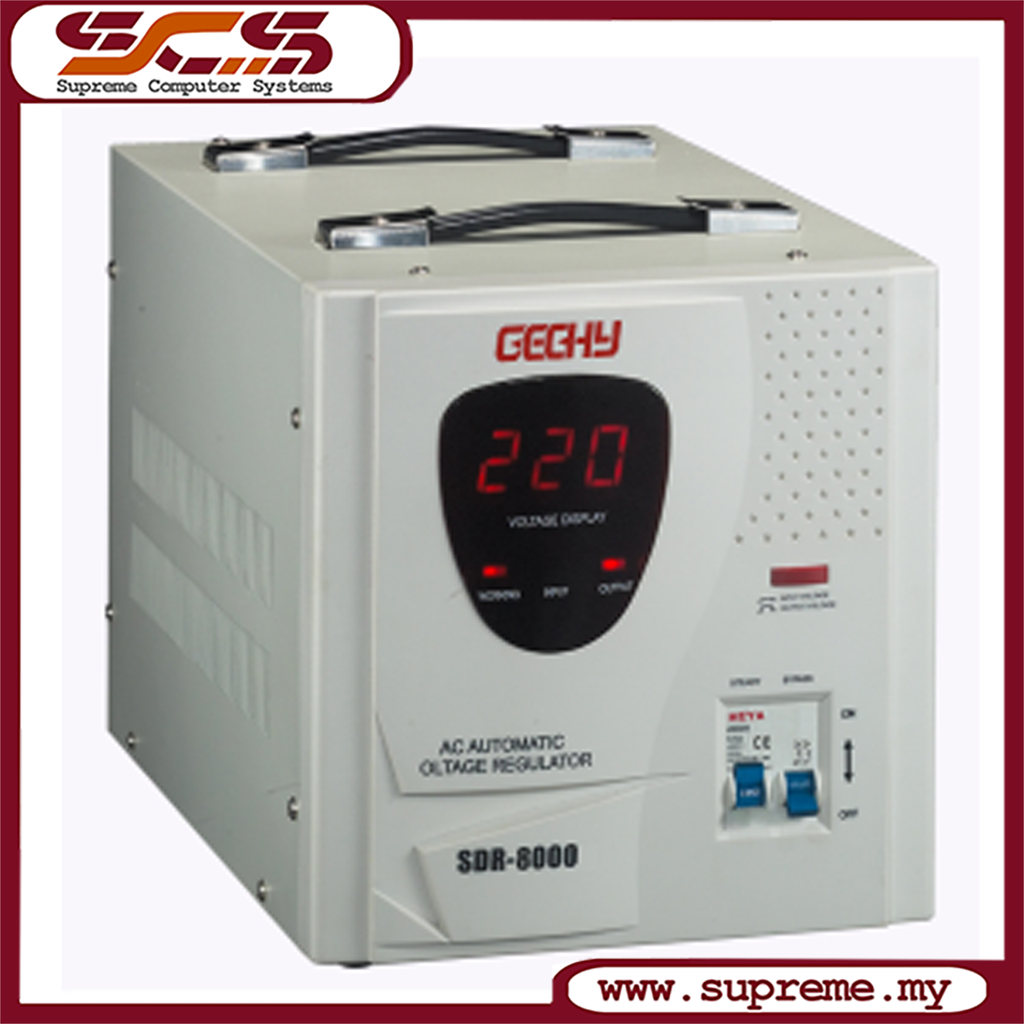

SDR-8000 LED Relay Type Full Automatic AC Voltage Regulator (AVR)

Descriptions

Advantage:
•Number of relays 3 +1
•The high output voltage accuracy (220V ± 8%)
•Wide stabilization range
•High speed stabilization
•Terminal block connection
•High accuracy
•Informative LED-display
•Modern design
•Microprocessor control
•The multistage defense

Power capacity  : 5600W
Input voltage      : AC 140-260V
Output voltage   : 220V±8%
Phase                  : Single Phase
Frequency           : 50-60Hz
Adjust time         : 1 Second
Type of stabilization   :Relay
Display                 : LED digital display
Protection over voltage    : 250±2V
Protection lack voltage     : 180±2V
Mode Bypass      : Yes
Efficiency             : 98%
Type of connection    : Terminal block
Degree of protection  : IP 20
Delay                    : 5 second
Temperature protection     : 110℃ ± 10℃
Ambient Temperature        : -10~+45℃
Relative humidity                : 80%
Waveform distortion          : No additional wave form distortion
Dimension of device          : 350*250*220mm(L*W*H)
Weight of device                 : 10.1Kg

What's In The Box

> 1x AC Voltage Regulator
