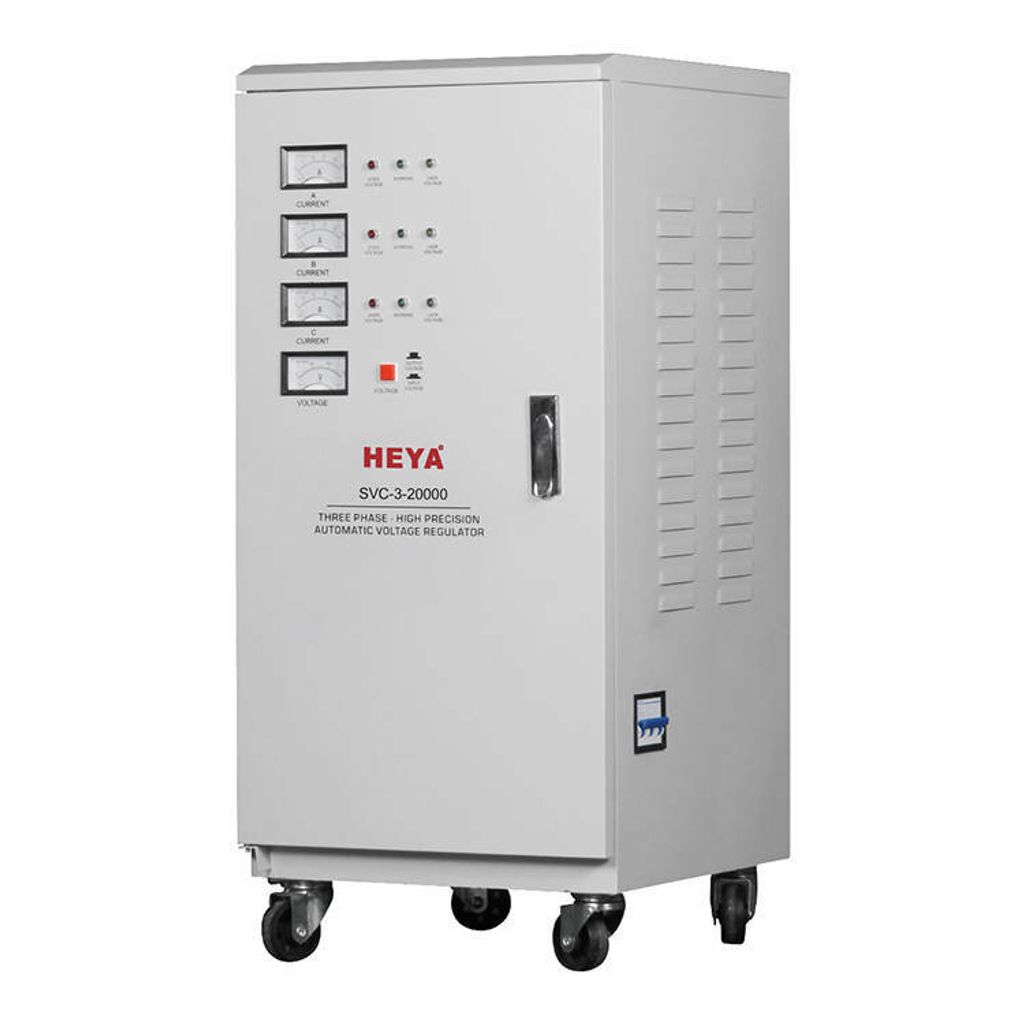

Three Phase 20KVA SVC Automatic Voltage Regulator Stabilizers/3 Phase SVC-3-20KVA

RM 2,199.00
Three Phase 20KVA SVC Automatic Voltage Regulator Stabilizers/3 Phase SVC-3-20KVA Ratings: 0 - 0 votes


Nominal power:20kva ; Load capacity:16kw
Vertical-Servo type
Microprocessor control
Input range:240-450VAC
Output:380V±3%
Analogue/Meter display
Three phase
Frequency: 50Hz/60Hz
Current Type: AC
Display: Meter
Adjust time: <1 sec.(against 10% input voltage deviation)
Protection over voltage: <430±2V
Protection lack voltage: <320±2V
Delay: 3 second
Temperature protection: 110℃±10℃
Ambient temperature: -10~45℃
Relative humidity: <90%
Dielectric strength: 1500V/min
Insulation resistance: ≥5MΩ
Certificate: CE,ISO9001, BV, EAC, SONCAP
Product size:405*380*832 MM
Package size:495*485*915 MM
